Match
Processing Modules

MATCH

Versatile matching circuit application.

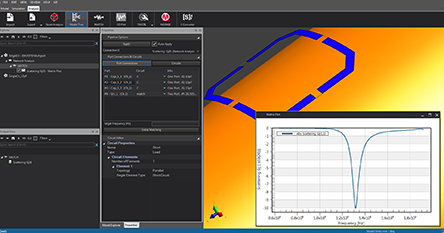

Single-channel MRI RF coil with a multiport simulation and adding the tuning capacitors and matching circuit with MATCH in post processing.

Product description

Versatile matching circuit application for multiport devices, such as RX/TX MR coil or antenna arrays.





Features

  • Input date from MultiPort Simulations or Touchstone files
  • Create new settings or load existing ones
  • Specify ports and loads
  • Select matching circuit type (T, pi, none) and order
  • Plot or export resulting S matrix



Applications

  • Matching of antennas and antenna arrays
  • Matching of RF array coils
