SAIMD-1-64
SAIMD-1 (64 MHz)
Standard Active Implantable Device for Systems Verification at 64 MHz
The SAIMD-1 (64 MHz) is a verification device for evaluations according to ISO/TS 10974 at 1.5 T.

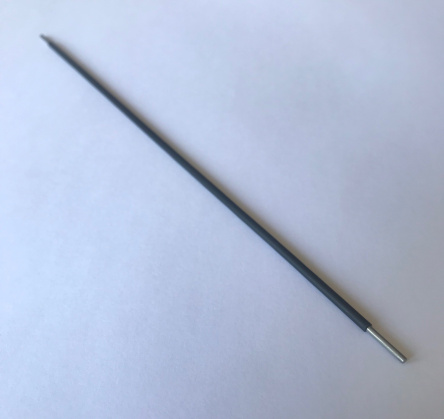

SAIMD-1 (64 MHz).
Wire Material |
Stainless steel |
Insulator Material |
Polyolefin |
Liquid Compatibility |
Compatible with sugar- and oil-based TSM. Not compatible with TSM based on Triton or diethylene glycol monobutyl ether (DGBE). |
Dimensions
|
Wire length: 200 ± 1 mm |
Cerificates & Target Values |
Certificates with transfer function as well as SAR values vs. distance from tip for the piX and ELIT1.5 phantoms, respectively, are available for the following tissue simulating media (TSM):
|
Compatible Phantoms |
piX, ELIT1.5, ASTM2009 |
