SAIMD-1-128

SAIMD-1 (128 MHz)

Standard Active Implantable Device for Systems Verification at 128 MHz

The SAIMD-1 (128 MHz) is a verification device for evaluations according to ISO/TS 10974 at 3.0 T.

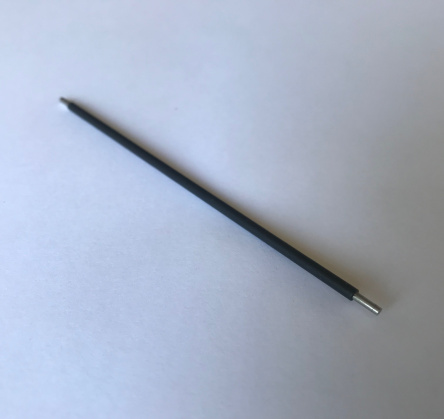

SAIMD-1 (128 MHz).





Wire Material

Stainless steel

Insulator Material

Polyolefin

Liquid Compatibility

Compatible with sugar- and oil-based TSM.
Not compatible with TSM based on Triton or diethylene glycol monobutyl ether (DGBE).

Dimensions

Wire length: 100 ± 1 mm
Tip length: 5 ± 0.3 mm
Conductor diameter: 1.5 ± 0.1 mm
Thickness insulator: 0.5 ± 0.1 mm

Certificates & Target Values

Certificates with transfer function as well as SAR values vs. distance from tip for the piX and ELIT3.0 phantoms, respectively, are available for the following tissue simulating media (TSM):

Compatible Phantoms

piX, ELIT1.5, ELIT3.0, ASTM2009
