TDS-B1: Probe System for MRI B1 Field Measurements

The TDS-B1 system was jointly developed with our Z43 partner organization Schmid & Partner Engineering AG (SPEAG) to non-disturbingly and traceably measure the radio frequency (RF) magnetic field (B1) inside magnetic resonance imaging (MRI) systems with high-precision.

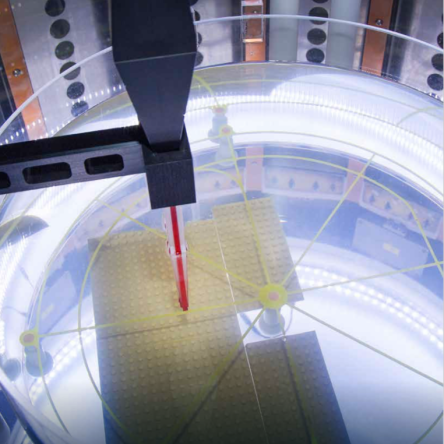

TDS-B1 System integrated in the DUAL-CYL-TFD for Test Field Diversity in MITS1.5.







Application

General RF transmit coils evaluations for design, verification and validation

Measurement of the incident field inside the MITS systems in order to monitor and adjust the desired amplitude and phase excitations in the TFD phantom (see TFD System)

Frequency Range

10 – 200 MHz (higher upon request)

Dynamic Range

120 dB @ 1 Hz resolution bandwidth
100 μA/m–10 A/m @ 100 MHz

Components

2x H1TDSx/MRI (Time-Domain Sensor magnetic field probes)
2x 1RU1TDS (TDS Standalone Remote Unit)
Dual channel oscilloscope
Laptop
TDS-B1 control and evaluation software

TDSB1 Software

Calibration and measurement modes
Import/export functionality (load/save current calibration)
Time-domain signal scope display (MRI pulse-train view)
Polarization display (polarization field view including handedness)
API for integration in automated test systems
DASY6 interface for TFD

Training

See our training video or request a demonstration at our laboratory in Zurich
