Universal Active Implantable Device for Systems Verification at 64 MHz and 128 MHz

The SAIMD-U is a dual frequency (64 MHz/128 MHz) verification and validation device for evaluations according to ISO/TS 10974. The advantage compared to SAIMD-1/2 is that it simulates the key elements of an active implantable medical device (AIMD), enabling the verification and validation of instrumentation and procedures of AIMD model generation, assessment of deposited power and induced voltages. The device is provided with a certificate containing target values.

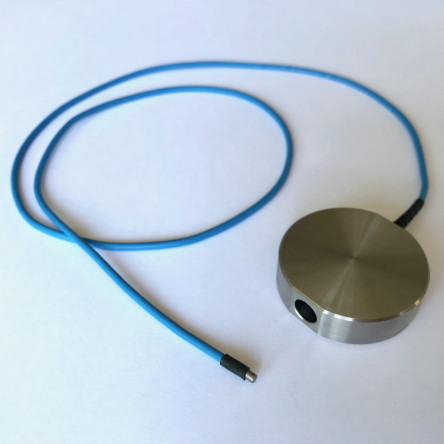

SAIMD-U for verification of test systems.

The SAIMD-U housing is designed to prevent ingress of fluids. This generic device with customized lead lengths can be provided upon request.


Can (IPG) / Tip Material	Stainless steel
Lead Material	Test lead: bare copper Insulator: silicone
Liquid Compatibility	Compatible with sugar- and oil-based TSM. Not compatible with TSM based on Triton or diethylene glycol monobutyl ether (DGBE).
Dimensions Can (IPG)	Diameter: 34 mm Height: 10 mm
Dimensions Lead	Length: 600 ± 1 mm Conductor: 0.4 mm² (stranding 104 × 0.07 mm) Outer diameter insulator: 2.1 ± 0.01 mm
Dimensions Tip	Length: 2 ± 0.1 mm Diameter: 2 ± 0.1 mm
Target Values	Certificates with transfer functions, target of total power depositions and induced voltages for the piX and DUAL-CYL-TFD phantoms are available for the following tissue simulating media (TSM): TLe78c0.47@64 at 64 and 128 MHz TLe78c0.65@64 at 64 and 128 MHz TLe78c1.20@64 at 64 and 128 MHz TLe11.5c.045@64 at 64 MHz TLe11.5c.045@128 at 128 Mhz customized target values on request.
